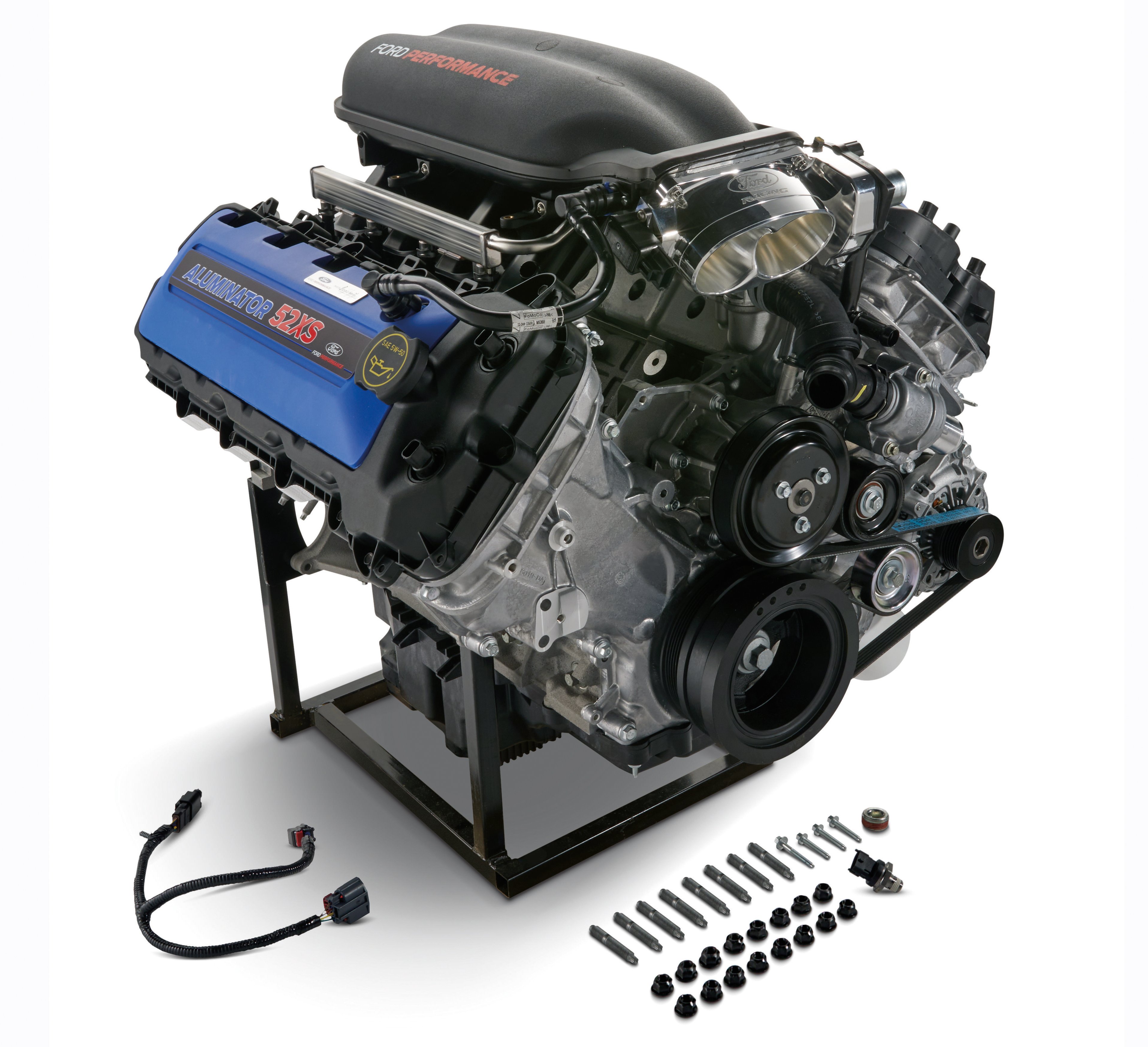

M-6007-A52XS Ford Racing 5.2L Aluminator XS Crate Engine

Chevrolet Performance Parts, GM Crate Engines and GM Crate Motors

M-6007-A52XS Ford Racing 5.2L Aluminator XS Crate Engine (No Cancel No Returns)

Call for availability

Designed to work with 2015-2017 Mustang GT electronics-custom calibration required!
580 Horsepower @ 7,800 RPM
445 lb.-ft. Torque @ 4,500 RPM
5.2L
317 Cubic Inches
12:1 Compression Ratio
Mahle® hard anodized forged pistons with low friction coating
Unique Manley® H-beam connecting rods with ARP2000® bolts
Unique Ford Performance M-6303-M52 Forged steel cross-plane crankshaft
Uses Ford Performance M-6010-M52B Shelby GT500 cylinder block
Ford Performance M-6675-M52 Shelby GT350 oil pan which features integrated windage and slosh baffles as well as an integrated oil pickup
Ford Performance M-6600-M50A billet steel gerotor oil pump gear set
Ford Performance M-9424-M50CJB Cobra Jet tuned intake (will not clear production 2015-2017 hood without modification). Please contact the Ford Performance Techline for more information
Ford Performance M-9926-CJ65 Cobra Jet dual bore 65mm bore throttle body
Four-valve-per-cylinder Shelby GT350 fully CNC ported aluminum heads with roller-finger camshaft followers
Unique PAC® valve springs
Ford Performance M-6550-M52 camshafts
Camshaft specifications:
Intake camshaft - 14mm lift / 270 degrees duration
Exhaust camshaft - 14mm lift / 270 degrees duration
Robust primary timing chains as used on Shelby GT350R
Low-leak rate variable cam timing (VCT) phasers
Forged steel crankshaft sprocket
Ford Performance M-9593-LU47 47 lb. fuel injectors
Ford Performance M-12A227-CJ13 high RPM pulse ring
Unique Ford Performance blue coil covers with added unique badging. This coil cover set is not available anywhere other than the Aluminator 5.2 XS!
Ford Performance M-12029-M50E ignition coil set
Ford Performance M-12405-M50A zero (0) heat range spark plugs
Ford Performance M-6731-FL820 oil filter (quantity-1 included)
200 amp alternator and Front Engine Accessory Drive (FEAD) kit as used on the Cobra Jet race car
NOTES:
Vehicle harness and PCM not included. Use Ford Performance Control Pack which contains wiring, PCM and installation kit M-6017-504V -designed for installation with a manual transmission. For automatic transmission version, please see M-6017-M50A Control Pack. Custom calibration required with either control pack!
Engine does not include engine harness or flywheel/flex plate
Engine mount bosses and bell housing mount pattern common to 4.6L and 5.0L modular engines
Headers not included
Assembly plant lift brackets not included
Custom PCM calibration required when installing crate engine in all vehicles including 2015-2017 Mustang
Premium unleaded fuel only!
