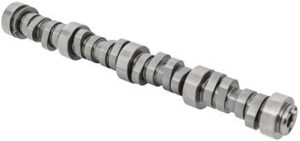

This hydraulic roller cam is for service only for all V8 engines with roller camshafts.
The duration at lash point in degrees (intake/exhaust) is 279/287;
Duration at .050" tappet lift (intake/exhaust) is 218/228;
Maximum lift with 1.6 rocker ratio (intake/exhaust) is 525/525.
Valve lash is zero/zero and lobe centerline is 112 degrees.
Technical Notes: The LT4 camshaft P/N 24502586 was designed to be used in a number of different engines. Therefore, the following change may need to be made to allow for correct assembly of the engine: For LT1 and L98 engines 1995 and before, the dowel pin in the end of the camshaft must be pushed in so extension from end of cam is .30+/-.01", the same as the production part. For 1996 LT1 and LT4 engines, the dowel pin is in the correct position, extending .620" from the end of the camshaft. This camshaft has a fuel pump lobe.
