Description

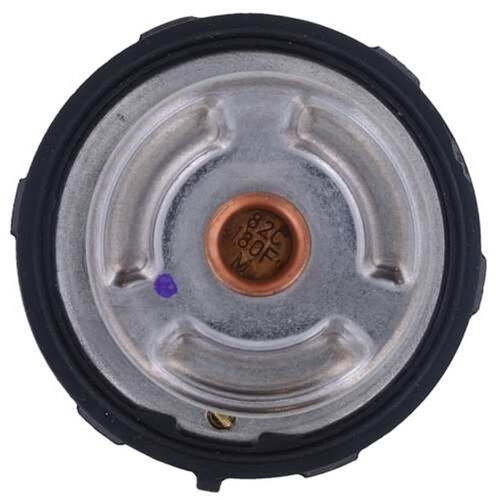

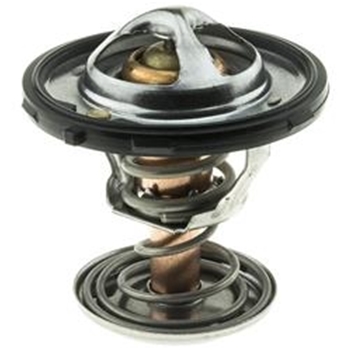

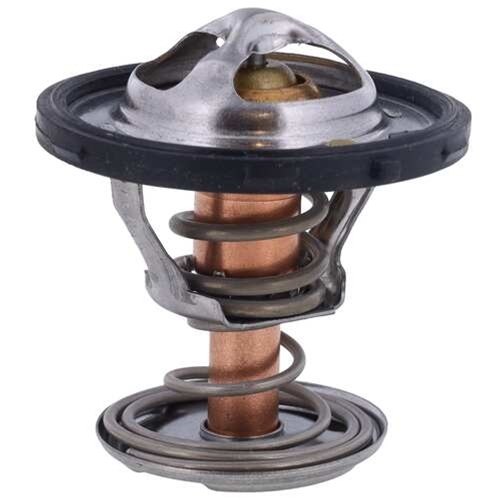

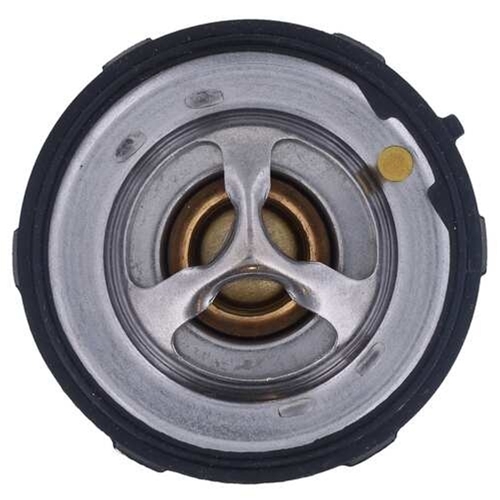

523-180 Thermostat, MotoRad 180 deg
Thermostat, Mechanical, Thermostat with Seal, Standard-flow, 180 degrees F, Copper/Stainless Steel, Buick, Cadillac, Chevy, GMC, Hummer, Isuzu, Each
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems.
Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant.
Specifications:
- Outlet Inside Diameter: 1.21 IN
- Outlet Outside Diameter: 1.73 IN
- Valve Outside Diameter: 1.35 IN
- Seal Quantity: 1
- Includes Jiggle Pin Check Valve: Yes
- Flange Thickness: 0.05 in
- Flange Thickness: 1.27 mm
- Gasket Quantity: 0
- Installation Tool Included: No
- Gasket Or Seal Material: Rubber
- Seal Material: Rubber
- Start to Open Temperature: 180.0 Deg. F
- Start to Open Temperature: 82.22 Deg. C
- Design: Standard
- Electric: No
- Engine Coolant Thermostat Quantity: 1
- Depth: 2.07 in
- Depth: 52.50 mm
- Jiggle Pin Check Valve Quantity: 1
- Bypass Flange Diameter: 1.58 in
- Bypass Flange Diameter: 40.13 mm
- Flange Height: 0.05 in
- Flange Height: 1.27 mm
- Bypass Flange Length: 0.98 in
- Bypass Flange Length: 25.00 mm
- Height Between Flanges: 1.89 in
- Height Between Flanges: 48.01 mm
- Gasket Or Seal Included: Yes
- Jiggle Pin Weep Hole: Yes
- Height: 2.70 in
- Height: 68.58 mm
- Sealing Flange Outside Diameter: 2.20 in
- Sealing Flange Outside Diameter: 55.88 mm
- MAP Controlled: No
- Gasket Or Seal Required: Yes
- Seal Type: O-Ring
- Gasket or Seal Pre-Installed: Yes
- Color: Silver
- Color: Brass
- Type: Standard
- Material: Steel
- Material: Copper
- Bolt Hole Quantity: 0
- Grade Type: OEM
