Description

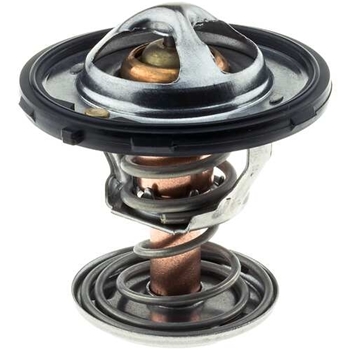

523-160 Thermostat MotoRad 160 deg
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems.
Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant.
Specifications:
- Outlet Inside Diameter: 1.21 IN
- Outlet Outside Diameter: 1.13 IN
- Seal Type: O-Ring
- Gasket Quantity: 0
- MAP Controlled: No
- Gasket Or Seal Required: Yes
- Height Between Flanges: 1.89 in
- Height Between Flanges: 48.01 mm
- Jiggle Pin Weep Hole: Yes
- Gasket Or Seal Included: Yes
- Sealing Flange Outside Diameter: 2.2 in
- Sealing Flange Outside Diameter: 55.88 mm
- Height: 2.7 in
- Height: 68.58 mm
- Grade Type: OEM
- Bolt Hole Quantity: 0
- Material: Stainless Steel
- Material: Copper
- Gasket or Seal Pre-Installed: Yes
- Type: Standard
- Color: Silver
- Color: Brass
- Jiggle Pin Check Valve Quantity: 1
- Depth: 2.07 in
- Depth: 52.50 mm
- Engine Coolant Thermostat Quantity: 1
- Electric: No
- Design: Standard
- Bypass Flange Length: 0.98 in
- Bypass Flange Length: 25.00 mm
- Flange Height: 0.05 in
- Flange Height: 1.27 mm
- Bypass Flange Diameter: 1.58 in
- Bypass Flange Diameter: 40.13 mm
- Start to Open Temperature: 160.0 Deg. F
- Start to Open Temperature: 71.11 Deg. C
- Seal Material: Rubber
- Includes Jiggle Pin Check Valve: Yes
- Installation Tool Included: No
- Gasket Or Seal Material: Rubber
- Seal Quantity: 1
- Flange Thickness: 1.27 mm
- Flange Thickness: 0.05 in
- Valve Outside Diameter: 1.35 IN
