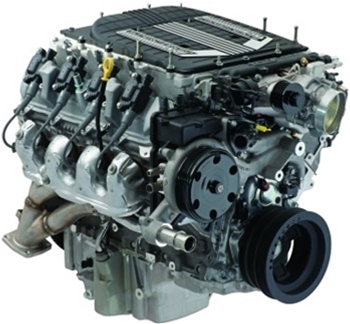

19431955 Chevrolet Performance Engine Asm Wet Sump Replaces 19417413 and 19368622, 19418844
As heart of the Camaro ZL1, the supercharged LT4 6.2L SC is the most powerful engine ever offered in a regular production Chevrolet. It features a more-efficient, more-compact 1.7L Eaton R1740 TVS supercharger, which spins at up to 20,000 rpm. That’s enough to generate more than 9 pounds of boost and help produce 650 horsepower and 630 lb.-ft. of torque.The LT4 is based on the same Gen V Small-Block architecture as the LT1 engine, with several unique features designed to support its higher output and the greater cylinder pressures created by forced induction. They include Rotocast A356T6 aluminum cylinder heads that are stronger and handle heat better than conventional castings, lightweight
titanium intake valves and stronger forged aluminum pistons.
TECH SPECS
Part Number:
19417413 (wet sump)
Engine Type: Gen V Small-Block V-8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)
Block: Cast aluminum with 6-bolt, cross-bolted main caps
Crankshaft: Forged steel
Connecting Rods: Forged powdered-metal steel
Pistons: Forged aluminum
Camshaft Type: Hydraulic roller
Valve Lift (in): 0.492 intake / 0.551 exhaust
Camshaft Duration (@0.050 in): 189° intake / 223° exhaust
Cylinder Heads: A356T6 Rotocast aluminum; as cast with 65.5cc chambers
Valve Size (in): 2.130 intake / 1.590 exhaust
Compression ratio: 10:1
Rocker Arms (P/N 12619829): Investment cast, roller bearing trunnion
Rocker Arm Ratio: 1.81:1
Recommended Fuel: Premium pump
Maximum Recommended RPM: 6,600
Reluctor Wheel: 58x
Balanced: Internal
INSTALLATION NOTES
• Assembly does not include electronics – use the correct LT4 controller kit for engine/transmission combination.
• Includes engine oil cooler
• Flesplate included (The engine comes with 12669050 or 12685003 which is OE for the new Camaro and has 6 holes for coupling,)
- Use 19435470 Attachment kit for 6L80 transmissions, see notes on the 19435470 kit for component parts.
• Not intended for marine applications
• Crankshaft has 8-bolt flywheel mounting pattern (Same as LT1 and LSA)
• Engine includes direct injection, VVT and Active Fuel Management
• Chevrolet Performance control kits do not use the Active Fuel Management components on this engine.
UPC:195491160880
More Details
LT4 6.2L Supercharged Crate Engine (PN 19431955) - FAQ
How much horsepower and torque does the LT4 crate engine make?
The LT4 (PN 19431955) produces 650 horsepower at 6,400 rpm and 650 lb-ft of torque at 3,600 rpm from a 6.2L (376 cubic inch) Gen V small-block. A 1.7L Eaton R1740 TVS supercharger spinning up to 20,000 rpm delivers more than 9 psi of boost.
What vehicles did the LT4 come in, and what will it fit?
The LT4 was the factory engine of the 2015-2019 C7 Corvette Z06 and the 2016+ Camaro ZL1 (and the Cadillac CTS-V). As a crate engine it drops into muscle cars, trucks, and resto-mods when paired with a Connect & Cruise controller and the correct accessory drive.
What transmissions work with the LT4 Connect & Cruise package?
Chevrolet Performance offers the LT4 in Connect & Cruise packages with the 4L80E (4-speed), 6L80E (6-speed), 8L90E (8-speed), or 10L90E (10-speed) automatic. The controller ships pre-calibrated for a retrofit, so it runs without third-party tuning.
What's the difference between the LT4 and the naturally aspirated LT1?
The LT1 is a naturally aspirated 6.2L making 460 hp; the LT4 adds the 1.7L supercharger to reach 650 hp. Both are Gen V direct-injection small-blocks on the same architecture, so most accessories and mounts interchange.
Can I buy just the engine, or do I need the full Connect & Cruise package?
You can buy the bare LT4 crate engine (19431955) on its own. For a street swap the Connect & Cruise kit is worth it - it matches the engine to a compatible transmission, controller, and calibration. If you already know your combination, we can source the individual part numbers separately.
The LT4 is on back order everywhere - can you actually get one?
Availability swings with GM production and these back-order often. We source from a nationwide GM dealer network and can usually locate and ship an LT4 when other sellers show none. Call with PN 19431955 for current stock and lead time.
