CEDCUBCK Colorado Under Body Camera Kit
This has been installed and tested on a 2026 Colorado, and this should also work on the Canyon.

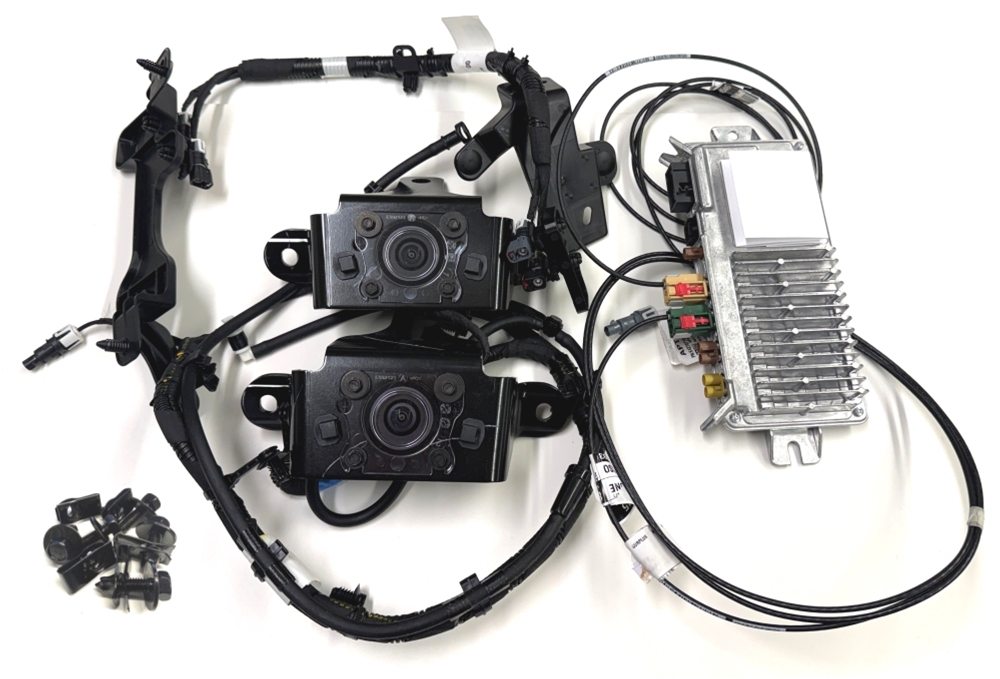

This Colorado Underbody Camera Kit comes with the following:
1 - Front Underbody Camera Kit
1 - Rear Underbody Camera Kit
1 - Intermediate Camera Harness Strap Kit
2 - Underbody Camera Video Harnesses
1 - Video Processing Module
1 - Hardware Kit
Note: The following conditions must be met when ordering.
1. This kit does not include installation. A dealer may be required to program the video processing module, call us for details
2. Vehicle must be equipped with HD Digital Vison W/360 View RPO (UV2)
3. We will need your VIN when ordering to confirm RPO codes (Please enter VIN in comments section when ordering)
The Under Body Camera Kit adds front and rear underbody camera views to a 2023-2026 Chevrolet Colorado or GMC Canyon after purchase.
Check your truck has option code UV2 before ordering. UXA is the underbody camera option, and it requires UV2. A truck without UV2 cannot take this kit.
The kit is plug and play across every year it covers. No dealer programming, no module coding.
In stock. Ships within one business day.
Frequently Asked Questions
Can I add underbody cameras to my Chevy Colorado or GMC Canyon after I bought it?
Yes, provided the truck has GM option code UV2. The Under Body Camera Kit (CEDCUBCK2) adds front and rear underbody cameras to a 2023-2026 Chevrolet Colorado or GMC Canyon that did not come with them. You do not need a new truck or a higher trim.
How do I know whether my truck can take the underbody camera kit?
Check for GM option code UV2 on your window sticker or build sheet. UXA is the underbody camera option itself and it requires UV2 to be present on the vehicle. If your truck does not have UV2, the underbody camera kit cannot be fitted.
What is the difference between GM option codes UXA and UV2?
UXA is the GM option code for the underbody cameras. UV2 is a separate option that UXA depends on: the vehicle must already have UV2 for underbody cameras to be added. When ordering the retrofit kit, UV2 is the code to look for on your existing truck.
Which model years does the underbody camera kit fit?
The Under Body Camera Kit fits 2023, 2024, 2025 and 2026 Chevrolet Colorado and GMC Canyon trucks. Fitment for 2027 and later has not been established.
Does the kit need programming, or is it plug and play?
The Under Body Camera Kit is plug and play across every model year it covers. It does not require dealer programming or module coding.
Does it show both front and rear underbody views?

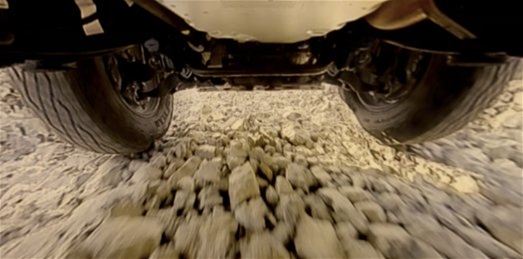

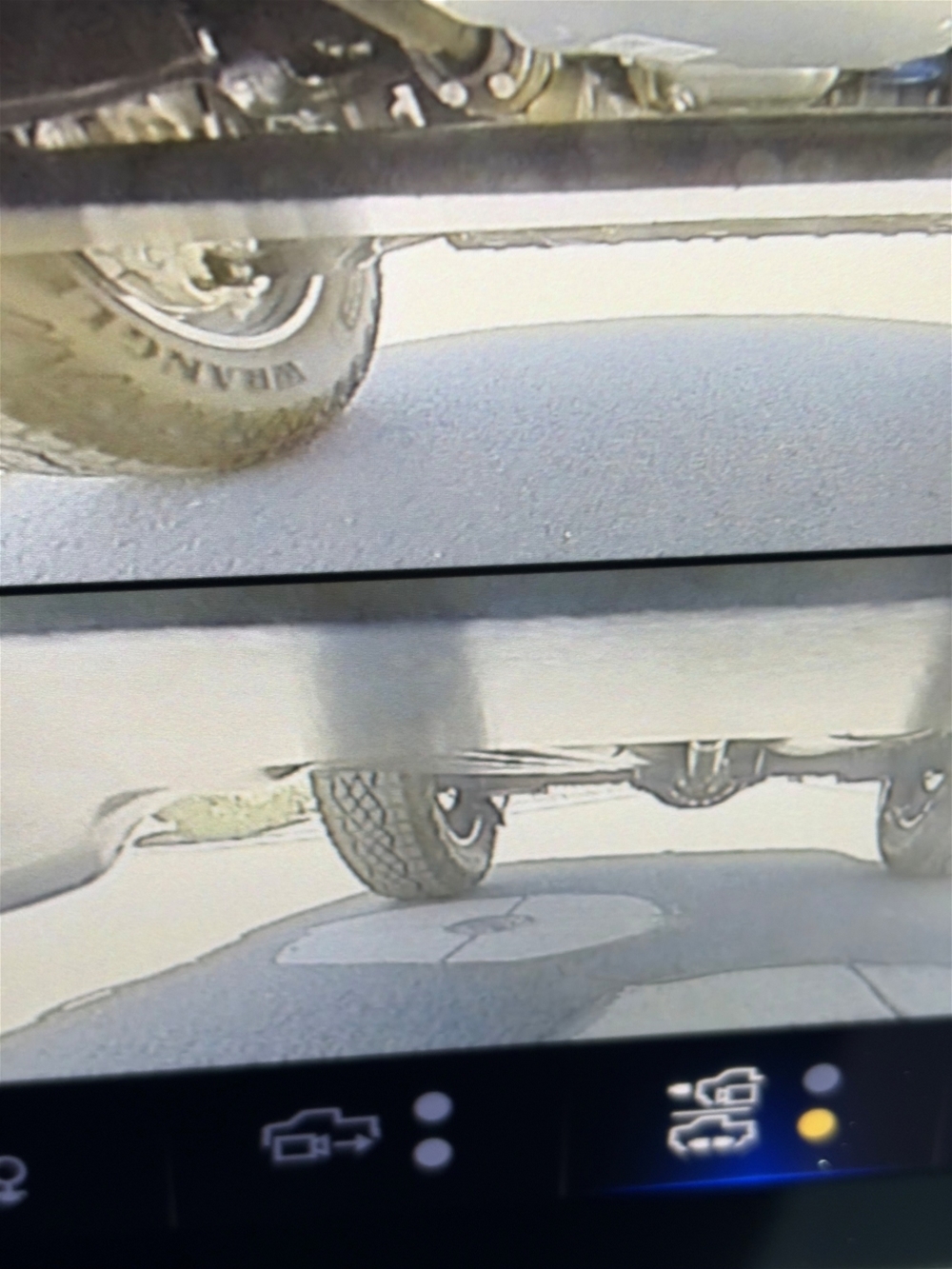

Yes. The kit provides both front and rear underbody camera views, the same coverage as the factory underbody camera system.
What is included in the Under Body Camera Kit?
The kit contains the genuine GM components for a complete front and rear underbody camera installation, including the front wiring harness and mounting hardware. It ships as one part number, assembled to a verified bill of materials.
Is the underbody camera washer system included?
No. The washer system is sold separately as the Underbody Camera Washer Hose Kit (CEDHK) at $42.16, which comprises hose extension 84968440, 90-degree hose extension 84968439 and adapter 84541334.
How much does the underbody camera kit cost?
The Under Body Camera Kit is $1,170.06. The kit is priced at the combined cost of its components with no assembly markup. Two of the components in the kit are not sold individually.
It is not a stock part anywhere. Can you actually supply it?
Yes. Crate Engine Depot assembles the kit and sources the genuine GM components through a nationwide dealer network, so it can be supplied even when no retailer stocks it as a shelf item. The kit is in stock and ships within one business day.
